AWS ELASTIC DISASTER RECOVERY (EDR)
What is Disaster Recovery (DR)?
Disaster Recovery (DR) is the strategy and process of restoring critical systems, applications, and data after a disruptive event such as natural disasters, hardware failures, cyberattacks, or human errors. A comprehensive DR plan ensures that a business can recover and maintain operations with minimal downtime, mitigating the impact of unforeseen disruptions on critical services.
Importance of Disaster Recovery:
Ensuring Business Continuity: A well-designed DR plan ensures that businesses can continue operations even in the face of significant disruptions. This helps minimize downtime and maintain access to essential services.
Mitigating Revenue Loss and Damage: Downtime can lead to financial losses, loss of productivity, and potential damage to the business’s reputation. A robust DR plan allows businesses to recover quickly, preventing such negative impacts.
Protecting Critical Data: DR strategies like real-time data replication and regular backups safeguard against major data loss. This is crucial for industries like healthcare, finance, and government sectors, where data integrity and availability are paramount.
- Resilience and Adaptability: A DR plan enhances an organization’s ability to withstand and recover from disasters, ensuring resilience against cyber threats, hardware malfunctions, or natural disasters. This adaptability makes businesses more competitive and less vulnerable to service interruptions.

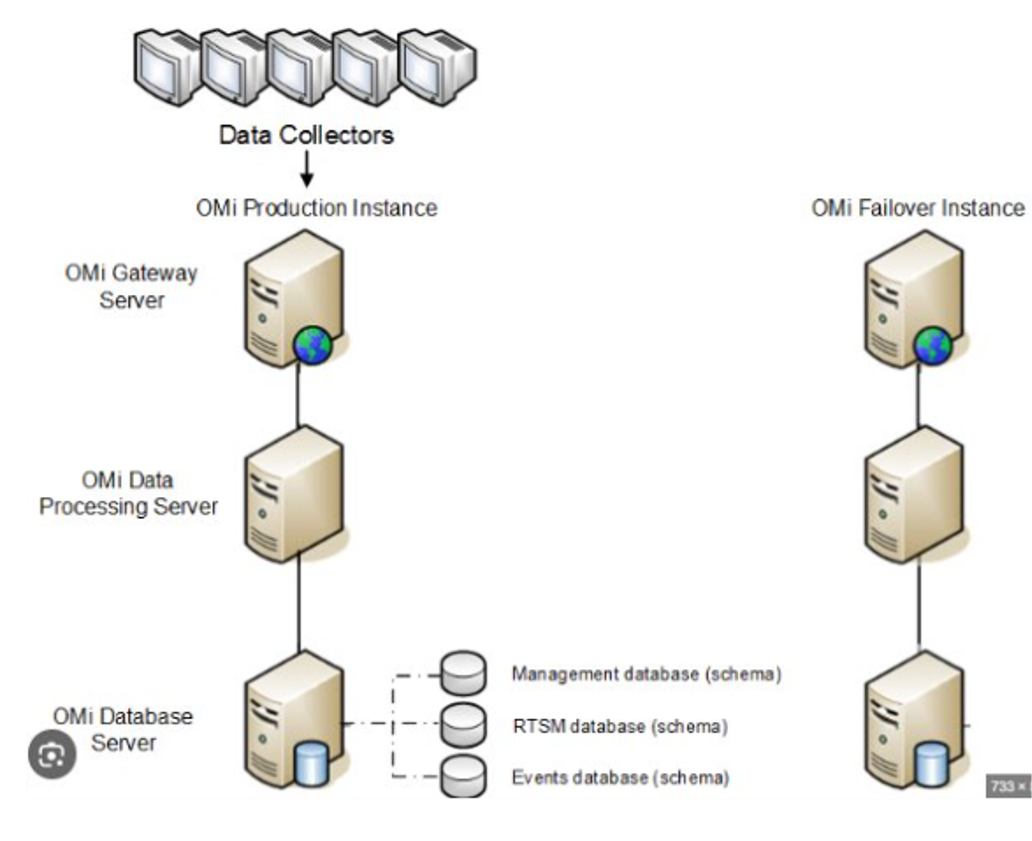

Traditional Disaster Recovery Plan architecture

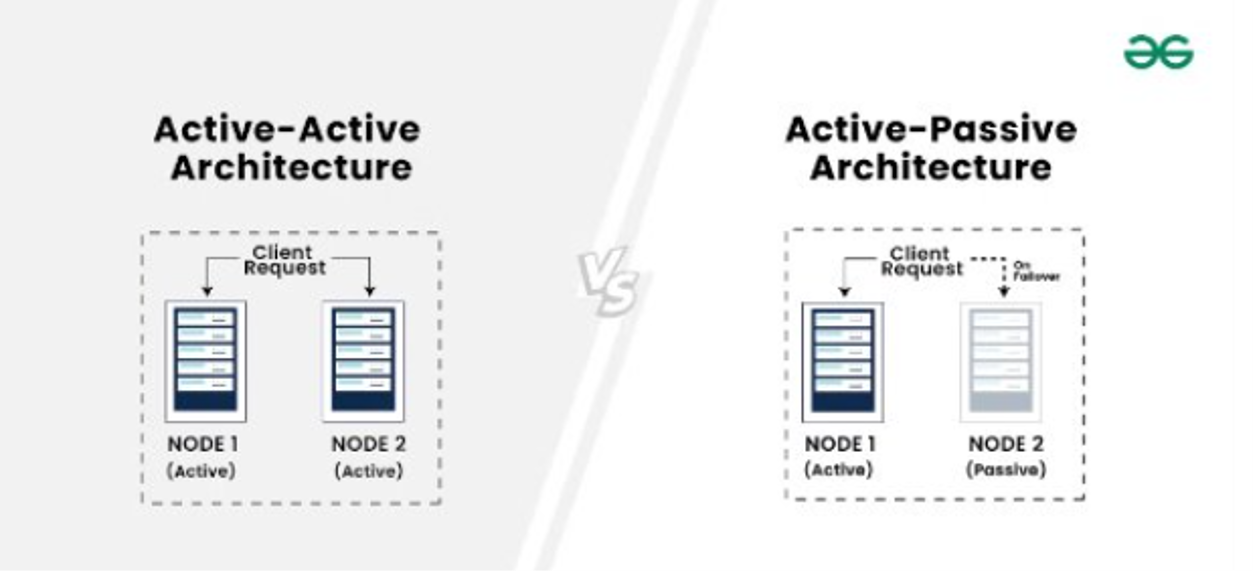

Types of Disaster Recovery Solutions:
Active-Active: In an active-active DR architecture, two or more data centers or systems are operational simultaneously and share the workload. Both sites can handle user traffic at any given time, providing redundancy and ensuring that if one site goes down, the other continues without disruption.
Active-Passive: In this model, the primary site (active) handles all the workloads, while the secondary site (passive) remains on standby. The passive site is only activated when the active site fails, serving as a backup and providing failover capabilities.
- Standalone: A standalone DR strategy involves a single data center without a secondary site for automatic failover. Recovery is managed through regular backups and manual intervention, typically resulting in longer recovery times compared to active-active or active-passive setups.
Key Terminology in Disaster Recovery:
Failover: In the event of a disaster, all user traffic is redirected to the recovery (secondary) server. This transition process is called failover.
Failback: When the primary server is back online after a disaster, user traffic is redirected back from the recovery server to the source server. This process is called failback.

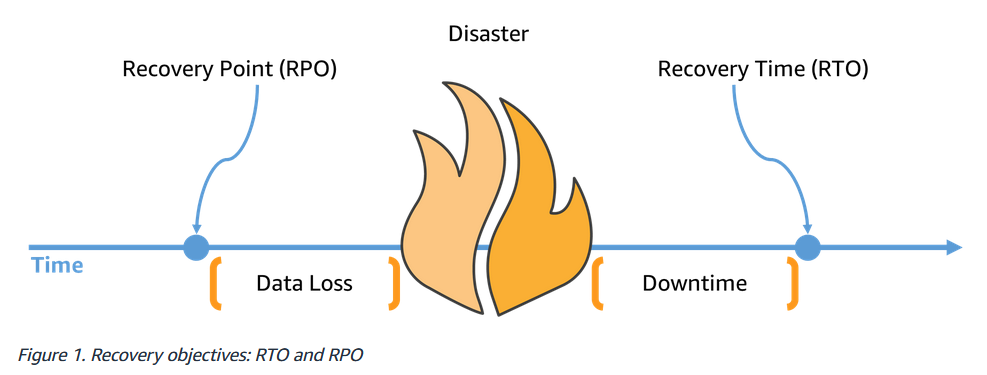

RTO (Recovery Time Objective): The targeted duration of time within which a system, application, or service must be restored after a disaster to avoid unacceptable consequences. Essentially, how quickly you can recover.
- RPO (Recovery Point Objective): Refers to the maximum acceptable amount of data loss measured in time. It defines how far back in time data can be recovered, e.g., 10 minutes, an hour, etc.
Disaster Recovery Servers and Architecture:
Source Server: The primary server that needs to be made disaster-ready. This is the server where production workloads run.
Replication Server: A dedicated server used for replication purposes. In AWS EDR (Elastic Disaster Recovery), this server is launched in a staging subnet and continuously replicates data from the source server.
Conversion Server: AWS Elastic Disaster Recovery uses a conversion server to handle necessary configurations such as drivers, networking, and OS license adaptation during the recovery process. It is launched temporarily and automatically terminated after the conversion is complete.
Recovery Server: The server that will take over user traffic in the event of a disaster. This server mirrors the configuration and data of the source server based on pre-configured templates and replication processes.
Introduction to AWS Elastic Disaster Recovery (EDR):
AWS Elastic Disaster Recovery (EDR) is a cloud-based DR service that minimizes downtime and data loss by offering reliable, fast recovery of both on-premises and cloud-based applications. EDR uses efficient, cost-effective storage, minimal compute resources, and point-in-time recovery to ensure a smooth disaster recovery process. The service supports various configurations, including on-premises to AWS, cloud to AWS, and AWS Region to AWS Region.
Key Features of AWS EDR:
Cross-Platform and Multi-Cloud Support:
- AWS EDR is source-agnostic, meaning it can replicate workloads from on-premises environments, other cloud providers (like Azure or Google Cloud), or between AWS Regions. This cross-platform support makes it highly adaptable and suitable for diverse IT architectures.
Continuous Block-Level Replication:
- Non-Disruptive Replication: AWS EDR continuously replicates data at the block level without disrupting the ongoing operations of source servers. This allows for a near-zero Recovery Point Objective (RPO), meaning data loss is minimized to only a few seconds in the event of a disaster.
Point-in-Time Recovery:
- AWS EDR allows for point-in-time recovery, enabling users to restore applications and data to specific moments before an incident occurred. This feature helps protect against ransomware attacks, data corruption, and accidental deletions, providing flexibility in how and when to recover systems.
Global Availability and Region-to-Region DR:
- AWS EDR supports Region-to-Region disaster recovery within AWS itself, allowing you to easily replicate and failover workloads between different AWS regions. This provides a higher level of availability for your applications and data, particularly in the case of regional outages.
Easy Setup and Management:
- Simplified Configuration: AWS EDR offers an easy-to-use interface, enabling organizations to set up disaster recovery with minimal technical expertise. The entire setup process involves simple steps like selecting source servers, configuring replication, and setting recovery templates.
- Centralized Dashboard: AWS EDR provides a centralized dashboard to monitor the replication, recovery, and health status of your DR plan. This unified view reduces the complexity of managing multiple DR processes across different servers and environments.
Automated Failover and Failback:
- Failover: During a disaster event, AWS EDR automatically initiates a failover process, redirecting user traffic and workloads to the recovery site. This is crucial for minimizing downtime.
- Failback: Once the disaster is mitigated and the primary system is restored, AWS EDR facilitates an automated failback process, bringing production workloads back to the original servers seamlessly.
Scalable DR Solution:
- AWS EDR is fully scalable, making it suitable for businesses of all sizes, from startups to large enterprises. You only pay for the resources used during recovery events, making it a cost-effective solution compared to traditional DR solutions, which often require maintaining a full-scale backup infrastructure.
Non-Disruptive DR Drills:
- AWS EDR allows for non-disruptive testing of disaster recovery plans, enabling businesses to test their DR processes without affecting production environments. This makes it easier to ensure that your recovery processes are efficient and ready when needed.
Built-In Security:
- AWS EDR leverages AWS’s robust security framework, ensuring data protection both at rest and in transit. This includes features like encryption, IAM role-based access control, and VPC security, which all help ensure your disaster recovery environment is secure.
Customizable Recovery Plans:
- Users can create customized recovery blueprints for each server, including configurations like server instance type, disk size, VPC settings, and security groups. These templates ensure that recovery servers match the performance and security requirements of the source servers.
Benefits of AWS Elastic Disaster Recovery
Cost-Effective DR:
- Traditional disaster recovery solutions require expensive backup infrastructure, idle recovery sites, and complex management processes. AWS EDR eliminates the need for maintaining such infrastructure and reduces costs by allowing you to only pay for what you use during disaster recovery events.
Rapid Recovery Time Objective (RTO):
- AWS EDR provides RTO in minutes, which means businesses can recover their applications quickly and get back to normal operations with minimal downtime.
Ransomware and Data Corruption Recovery:
- By providing point-in-time recovery, AWS EDR allows businesses to restore their systems to a state before the ransomware attack or data corruption occurred. This ensures that your data and systems can be brought back to a clean version without lingering malicious code.
Improved Business Resilience:
- AWS EDR ensures that critical business applications are available even in the event of unexpected disasters, whether they be regional outages, human errors, or cyberattacks. By automating failover and failback, it minimizes human intervention and reduces the risk of errors during disaster recovery.
End-to-End Monitoring:
- AWS EDR integrates with Amazon CloudWatch to provide real-time monitoring and alerting for the disaster recovery environment. This allows you to monitor replication performance, server health, and recovery processes across all servers.
Common Use Cases for AWS Elastic Disaster Recovery:
On-Premises to AWS Migration:
- AWS EDR is often used by businesses migrating from on-premises data centers to the cloud. It provides a low-impact migration solution by continuously replicating on-premises servers to AWS, ensuring that the switchover to cloud-based production is smooth and data is always up-to-date.
Cloud-to-Cloud Disaster Recovery:
- AWS EDR can be used for DR between different cloud providers (e.g., replicating workloads from Azure to AWS), ensuring cross-cloud availability. It also enables multi-region DR within AWS, ensuring continuity across geographically separated regions.
DR for Regulated Industries:
- AWS EDR is highly beneficial for industries like healthcare, finance, and government, where data integrity and availability are paramount. It ensures regulatory compliance by offering detailed reporting, recovery testing, and adherence to strict recovery point and recovery time objectives.
Ransomware Defense:
- AWS EDR’s point-in-time recovery feature helps organizations recover from ransomware attacks by restoring servers to a specific clean state before the infection occurred, reducing the need for expensive decryption efforts or paying ransoms.

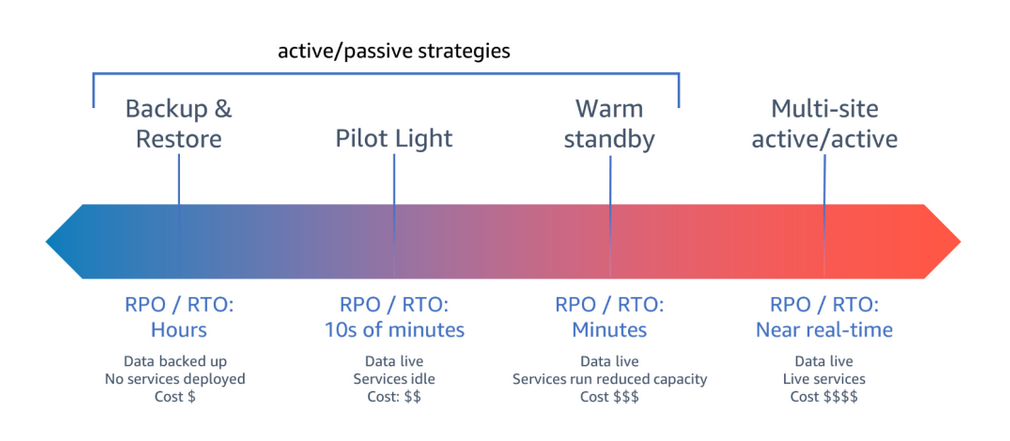

Disaster Recovery (DR) Strategies for AWS Elastic Disaster Recovery (EDR)
When designing a disaster recovery (DR) plan for your organization, it’s essential to select the right strategy based on your Recovery Point Objective (RPO), Recovery Time Objective (RTO), and the specific needs of your business. AWS Elastic Disaster Recovery (EDR) offers flexibility in implementing various DR strategies, ensuring business continuity in the event of disasters, including system failures, cyberattacks, or natural calamities. Here are some common DR strategies that can be applied with AWS EDR:
1. Backup and Restore
Overview: This is the most basic DR strategy, where regular backups are created, and systems are restored from those backups in the event of a disaster.
- RPO: Hours to days, depending on backup frequency.
- RTO: Hours to days, as the data must be restored from backups.
- How AWS EDR Helps: While AWS EDR provides continuous data replication, you can integrate it with Amazon S3 and AWS Backup for long-term data storage. Backup and Restore is a good fit for non-critical applications with longer acceptable downtimes.
2. Pilot Light
Overview: In this strategy, a minimal version of the environment is always running in the DR region (i.e., a "pilot light"). Critical components, such as databases and core services, are continuously replicated, while other services are only started when needed.
- RPO: Minutes to hours, as only the core infrastructure is replicated.
- RTO: Minutes to hours, as you must scale up additional components upon failover.
- How AWS EDR Helps: AWS EDR continuously replicates the pilot light’s critical infrastructure, allowing rapid failover when a disaster occurs. You can also automate scaling the remaining components with AWS CloudFormation and Amazon EC2 Auto Scaling.
3. Warm Standby
Overview: A warm standby environment is a scaled-down version of a full production environment that is always running. When a disaster occurs, this environment is scaled up to handle the full production load.
- RPO: Seconds to minutes.
- RTO: Minutes to an hour.
- How AWS EDR Helps: With AWS EDR, you can continuously replicate your applications and data to a warm standby environment. In the event of a disaster, you can quickly scale the resources to full capacity, ensuring minimal downtime.
4. Multi-Site (Active-Active)
Overview: In an Active-Active setup, multiple production environments run simultaneously in two or more AWS regions. Traffic is distributed between them, and if one region fails, the other can continue handling the load without disruption.
- RPO: Zero or near-zero.
- RTO: Zero or near-zero.
- How AWS EDR Helps: While AWS EDR helps ensure continuous replication, an Active-Active strategy requires the use of Amazon Route 53 for DNS failover and AWS Global Accelerator for efficient traffic routing. This strategy provides the highest level of availability and minimal recovery time, but at a higher cost.
5. Active-Passive
Overview: In this strategy, one environment actively handles all traffic while a secondary (passive) environment is kept in standby mode. The passive environment becomes active during failover.
- RPO: Seconds to minutes.
- RTO: Minutes.
- How AWS EDR Helps: AWS EDR ensures continuous replication of the active environment’s data and applications to the passive site. During a failover, AWS EDR can quickly launch recovery instances in the passive environment and reroute traffic using services like Amazon Route 53.
6. Cloud-to-Cloud Replication
Overview: If you have workloads running in a non-AWS cloud provider, such as Microsoft Azure or Google Cloud, AWS EDR can be used to replicate your workloads from that cloud to AWS, ensuring continuity across cloud environments.
- RPO: Seconds to minutes.
- RTO: Minutes.
- How AWS EDR Helps: AWS EDR provides replication from other cloud providers to AWS with a unified process for recovery, failover, and failback, ensuring business continuity without vendor lock-in.
Selecting the Right DR Strategy
When choosing a disaster recovery strategy, consider the following:
- Criticality of Applications: Determine which applications are mission-critical and require minimal downtime.
- RPO and RTO Requirements: Assess how much data loss and downtime is acceptable for your business.
- Budget Considerations: While Active-Active and Warm Standby offer better recovery times, they also come with higher costs compared to Backup and Restore or Pilot Light.
- Compliance and Security Needs: Ensure that your DR strategy complies with industry regulations and adheres to stringent security protocols.
Conclusion
AWS Elastic Disaster Recovery is an all-encompassing, flexible, and scalable solution for businesses looking to safeguard their critical infrastructure and applications. It offers key benefits like continuous replication, rapid RPO and RTO, simplified management, and built-in security, making it a preferred solution for disaster recovery in modern cloud environments. By leveraging AWS EDR, organizations can ensure business continuity, minimize downtime, and protect against data loss without the need for maintaining costly, traditional DR infrastructure.
